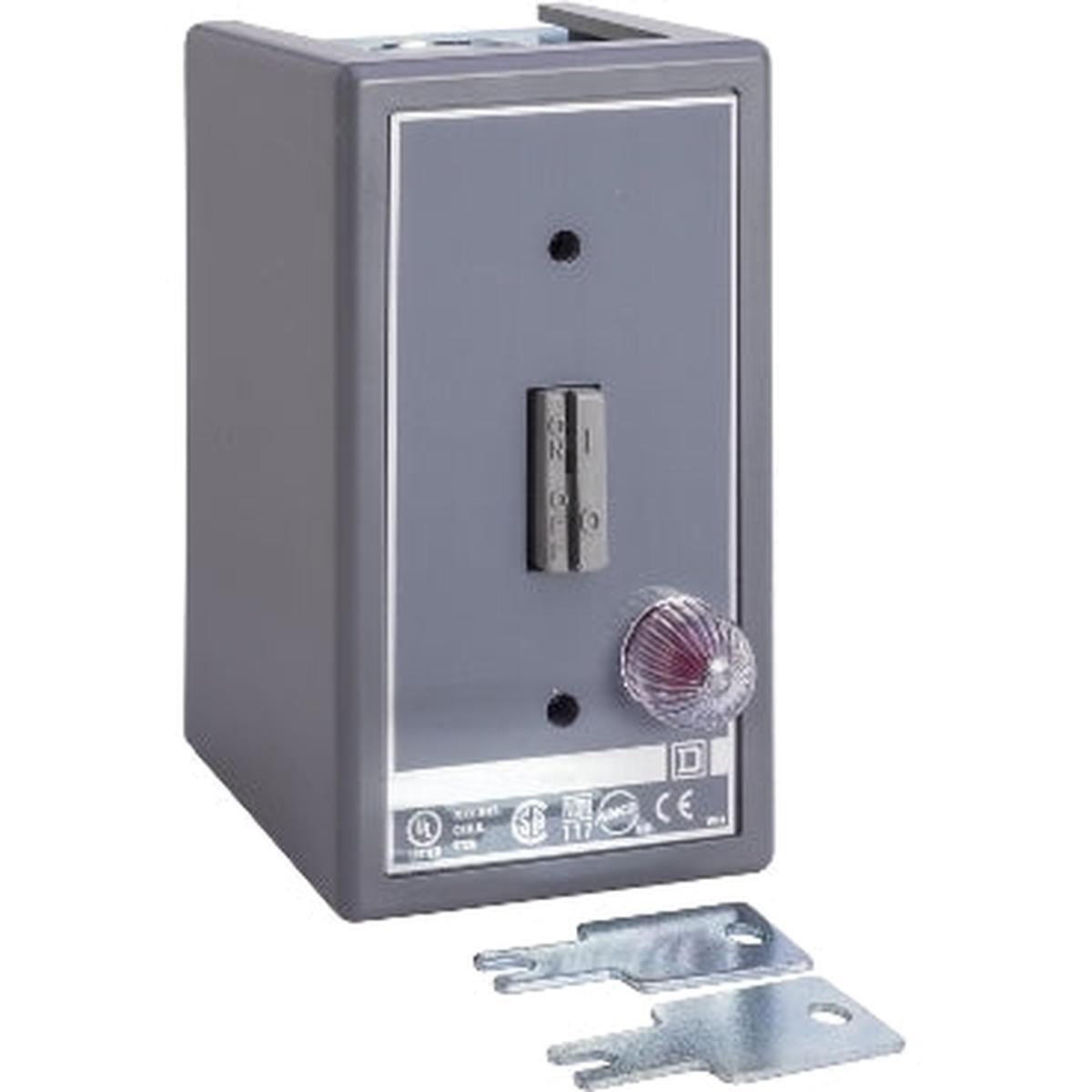

2510FG3 – Square D 16 Amp 277 Volt 1 Pole FHP Manual Motor Starter NEMA 1 Key Operated

2510FG3

2510FG3 is a Square D FHP manual motor starter designed for fractional single phase motors up to 1 HP with key-operated control.2510FG3 provides easy manual On-Off control and melting alloy overload protection for small motors. It features a 16 Amp rating, 277 Volt AC voltage, single pole configuration, and NEMA 1 surface mounting.

Key Specifications
• Amperage: 16 Amp
• Voltage: 277 Volt AC
• Poles: 1 Pole
• Horsepower Rating: 1 HP
• Mounting Type: NEMA 1 Surface Mount
• Control Unit: Key Operated
• Overload Protection: Melting Alloy
• Series/Frame: FHP

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 2510FG3
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 2510
• Type : F
• Voltage : 277
• Amperage : 16
• Phase : 1
• Poles : 1
• Nema Rating : 00

Product Data

• GTIN : 00785901553977
• Dimensions : Width 2.44 in (61.98 mm) x Height 4.25 in (107.95 mm) x Depth 2.75 in (69.85 mm)
• Weight : 10
• Certification : UL listed file E42243 CCN NLRV CSA LR25490 class 3211 05
