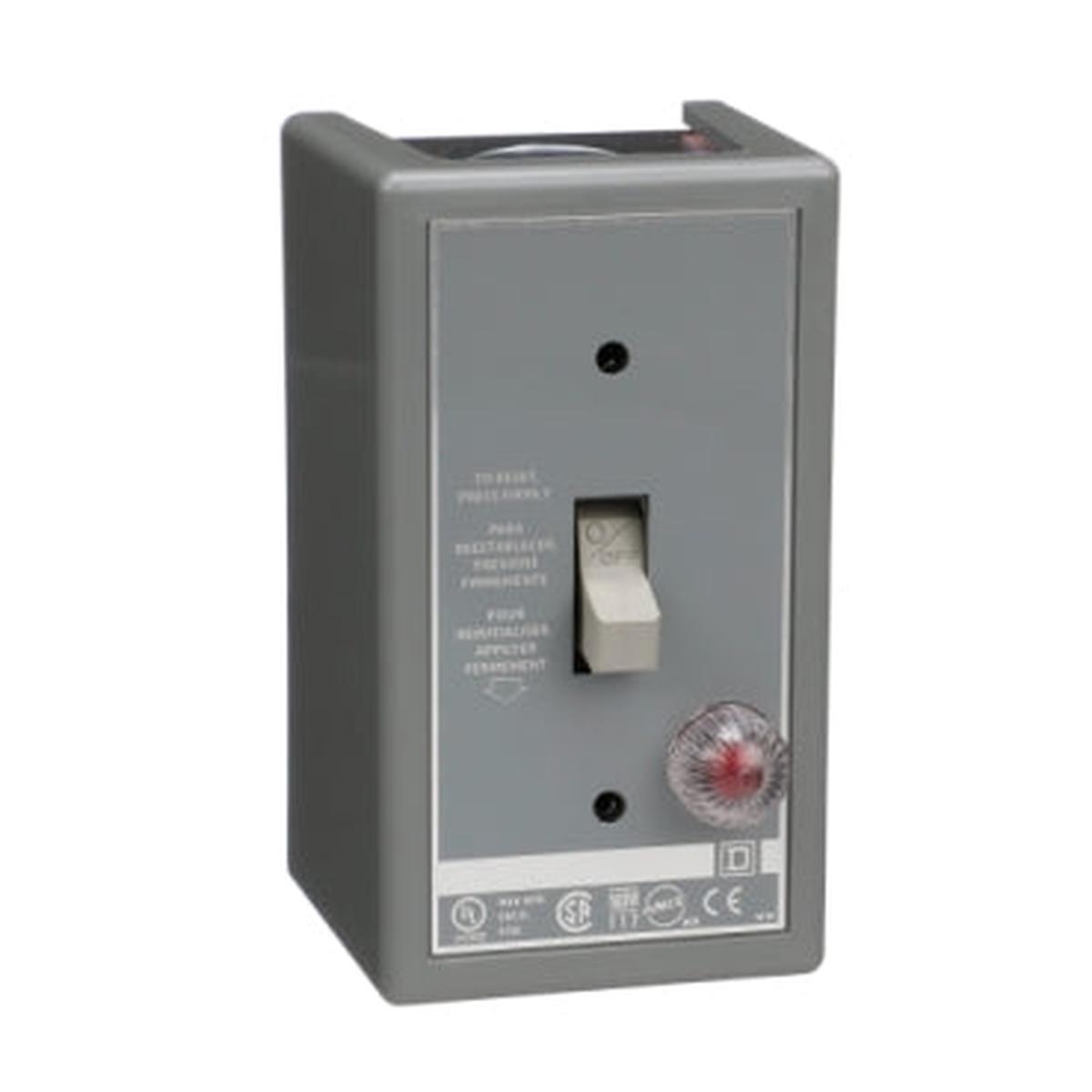

2510FG2P – Square D 16A 2-Pole Fractional Horsepower Manual Starter, Toggle Operated, NEMA 1, 1 HP at 277 VAC

2510FG2P

2510FG2P is a Square D fractional horsepower manual motor starter designed for 16 amp circuits with 2 poles and a toggle switch operator.This manual starter features a NEMA 1 surface mounting enclosure, red pilot light indicator, and is rated for 1 HP at 277 VAC.

• Amperage Rating: 16 Amp
• Voltage Rating: 277 VAC
• Horsepower Rating: 1 HP at 277 VAC
• Number of Poles: 2
• Control Type: Toggle Switch
• Enclosure Type: NEMA 1 (General Purpose)
• Mounting Type: Surface Mount
• Red Pilot Light Indicator for local signaling
• UL Recognized and CSA Certified
• Non-Reversing Motor Starter
• Electrical Connection: Screw Clamp Terminals
• Series: 2510F

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Non-Reversing

Specifications

• Part Number: 2510FG2P
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 2510
• Type : F
• Voltage : 277
• Amperage : 16
• Phase : 1
• Poles : 2
• Nema Rating : 00

Product Data

• UPC : 785901553960
• GTIN : 00785901553960
• Country of Origin : Mexico
• Dimensions : 4.25 in x 2.75 in
• Weight : 0.82
• Certification : CSA LR25490, E42243 CCN NLRV, UL Listed
