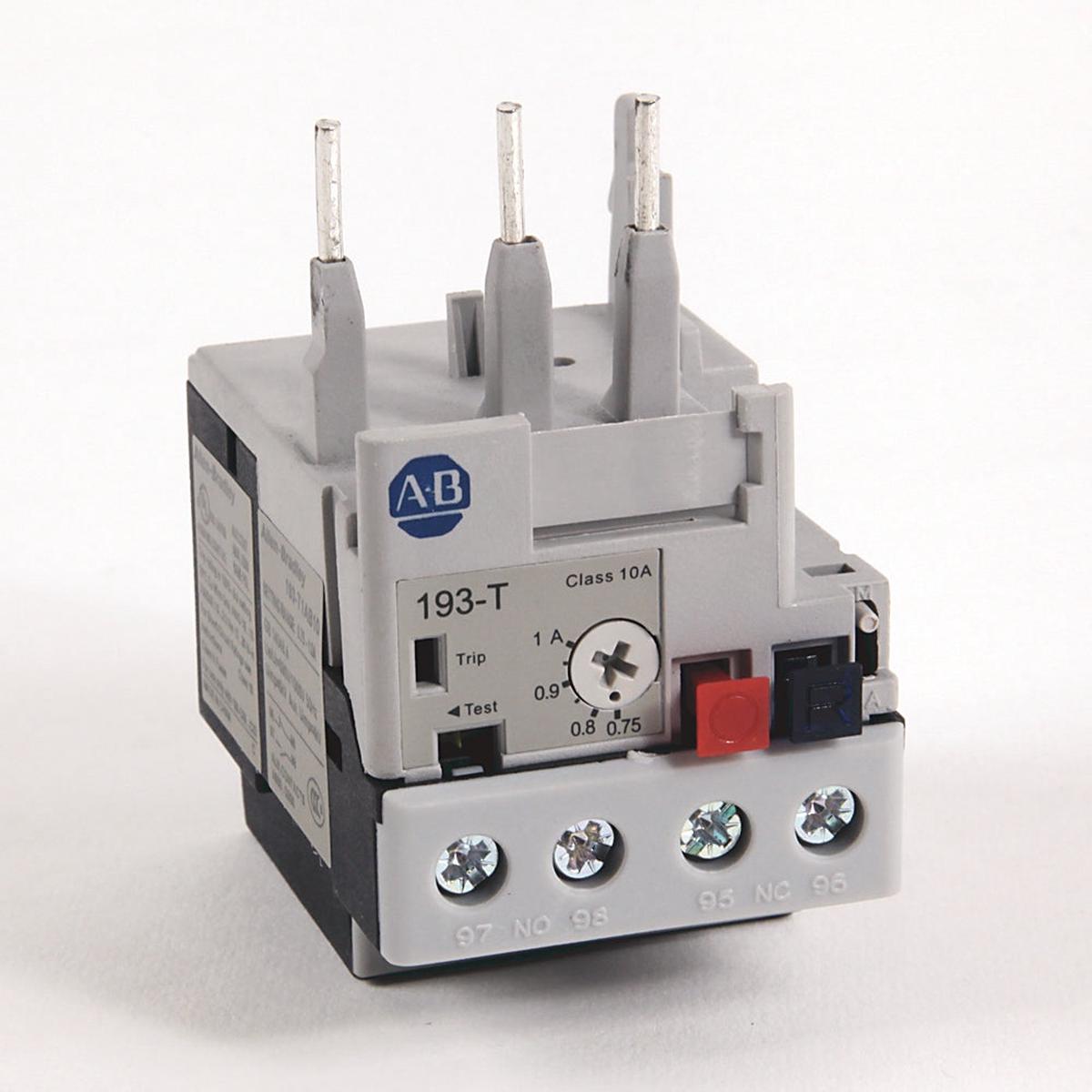

193-T1AB75 – Allen-Bradley Thermal Overload Relay, 5.5-7.5A, 690V AC, Trip Class 10A, Manual/Auto Reset, for 100-C09…23 Contactors, IP20

193-T1AB75

193-T1AB75 is an Allen-Bradley thermal overload relay designed for reliable motor protection in industrial control applications.

This bimetallic overload relay offers ambient temperature compensation from -20C to +60C, ensuring consistent performance across a wide range of operating conditions. It features both manual and automatic reset options, a visible trip indicator, and is specifically designed for use with Allen-Bradley 100-C09 to 100-C23 contactors. The 193-T1AB75 provides differential release for phase loss sensitivity, helping protect motors during phase loss conditions.

Key Specifications

• Amperage: 5.57.5A adjustable
• Voltage: 690V AC (rated operational voltage)
• Poles: Not specified in available documentation
• Mounting Type: Integrated (not separately mounted)
• Interrupt Rating: Not specified in available documentation
• Series/Frame: 193-T1, for 100-C09…23 contactors
• Trip Unit: Bimetallic, Trip Class 10A
• Certifications: IEC standards (specific certification numbers not listed)
• Reset: Manual and automatic
• Contact Configuration: 1 NO + 1 NC
• Ambient Temperature Range: -20C to +60C
• Enclosure Rating: IP20

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 193-T1AB75
• Manufacturer : Allen-Bradley
• Brand : Allen-Bradley
• Category : Motor Control
• Item Subcategory : Overload Relay
• Compatible Frames : MA

Product Data

• UPC : 662074728176
• Weight : 0.27 lb
