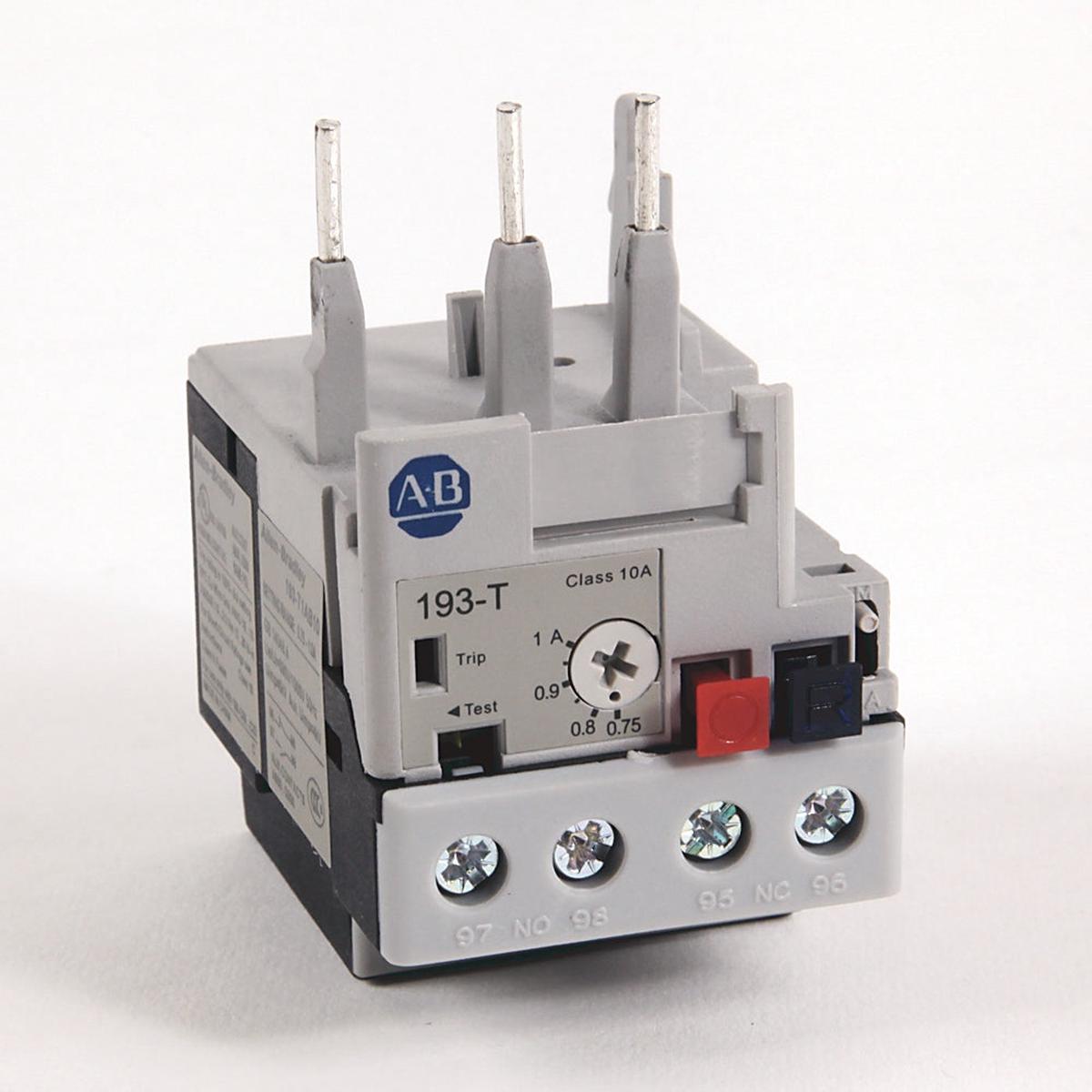

193-T1AB48 – Allen-Bradley Thermal Overload Relay 3.5-4.8A Class 10 Trip Manual/Auto Reset

193-T1AB48

193-T1AB48 is an Allen-Bradley thermal overload relay designed for motor protection with an adjustable current range of 3.5 to 4.8 amps and Class 10 trip rating.This bimetallic overload relay features both manual and automatic reset options, phase loss sensitivity, and mounts directly to 100-C09, 100-C12, 100-C16, or 100-C25 contactors. It provides reliable motor protection with a trip class 10, tripping within 10 seconds under overload conditions, and includes a visible trip indicator flag.

Key Specifications
• Amperage Range: 3.5-4.8 Amps
• Trip Class: 10
• Reset Type: Manual and Automatic
• Phase Loss Sensitive: Yes
• Mounting: Direct mount to 100-C09 to 100-C25 contactors
• Contact Configuration: 1 NO, 1 NC auxiliary contacts
• Standards: CCC, CE, KC certified
• Type: Bimetallic, ambient compensated
• Interrupt Rating: Per IEC/EN 60947-4-1
• Weight: 115 grams

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 193-T1AB48
• Manufacturer : Allen-Bradley
• Brand : Allen-Bradley
• Category : Motor Control
• Item Subcategory : Overload Relay
• Compatible Frames : MA

Product Data

• UPC : 662074728152
• Weight : 0.13 lb
