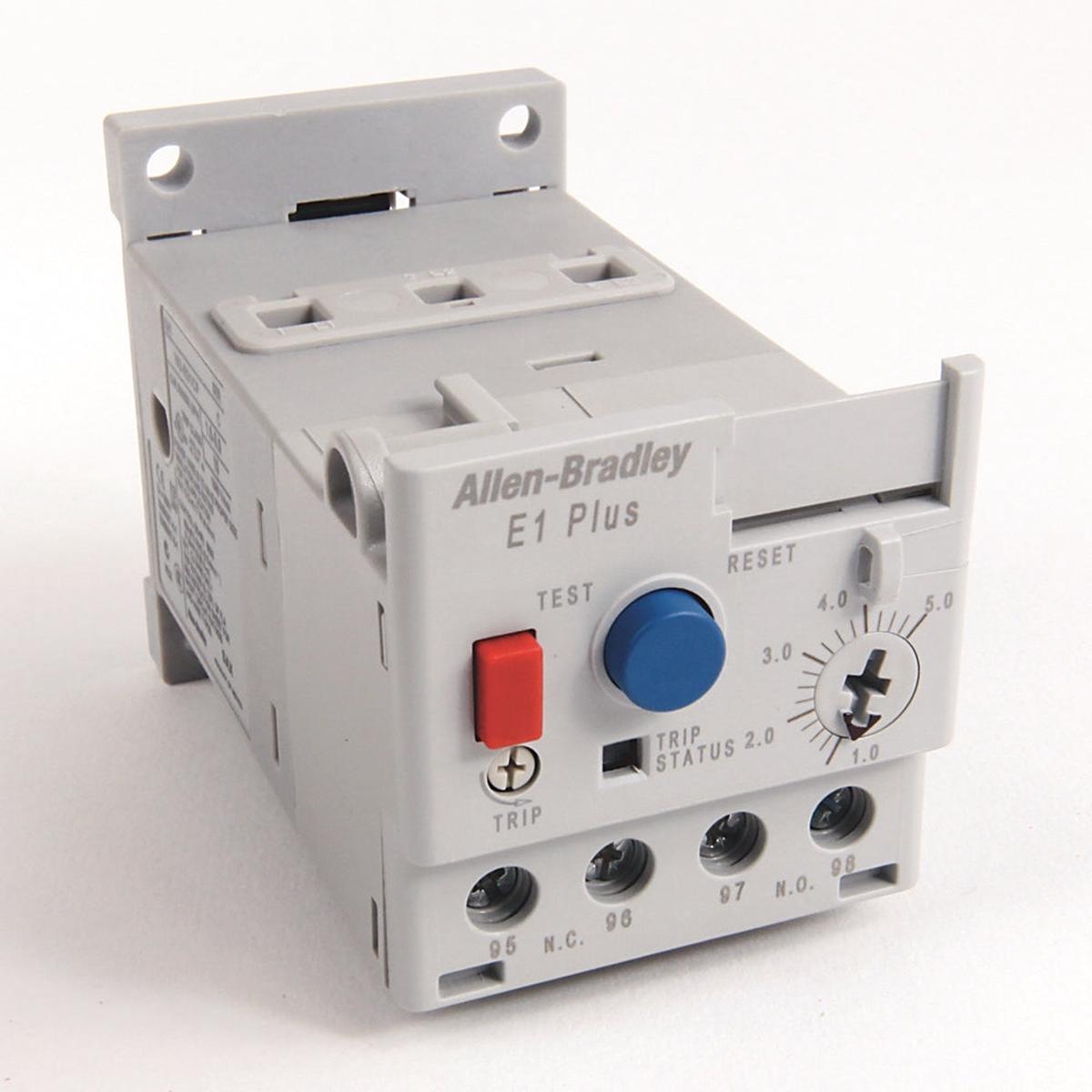

193-ED1CB – Allen-Bradley E1 Plus 1-5 Amp 3-Phase IEC Overload Relay Manual Reset 690V Trip Class 10

193-ED1CB

193-ED1CB is an Allen-Bradley E1 Plus solid state IEC overload relay designed for motor control applications with a 1-5 Amp adjustable current range.193-ED1CB features a 3-phase design, manual reset, and trip class 10 protection. It operates at 600-690 VAC and mounts directly to Allen-Bradley 100-C09 to 100-C23 contactors. This relay includes 1 normally open (N.O.) and 1 normally closed (N.C.) contact, phase loss protection, and screw-type terminals for secure wiring. The device is self-powered, minimizing heat generation and simplifying installation without the need for an external power supply.

• Amperage: 1-5 A adjustable
• Voltage: 600-690 VAC, 50/60 Hz
• Phases: 3-phase
• Trip Class: 10 (trips within 10 seconds)
• Reset Type: Manual reset
• Mounting: Fits 100-C09 to 100-C23 contactors
• Contact Configuration: 1 N.O., 1 N.C.
• Terminal Type: Screw terminals
• Self-powered design
• Phase loss protection included
• Standards: C-TICK, CCC, CE, CSA, KC, Marine, UL certified
• IP20 rated enclosure

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 193-ED1CB
• Manufacturer : Allen-Bradley
• Brand : Allen-Bradley
• Category : Motor Control
• Item Subcategory : Overload Relay
• Relay Style : Solid State
• Amperage Maximum : 5
• Amperage Minimum : 1
• Compatible Frames : CHND

Product Data

• Weight : 5.19
