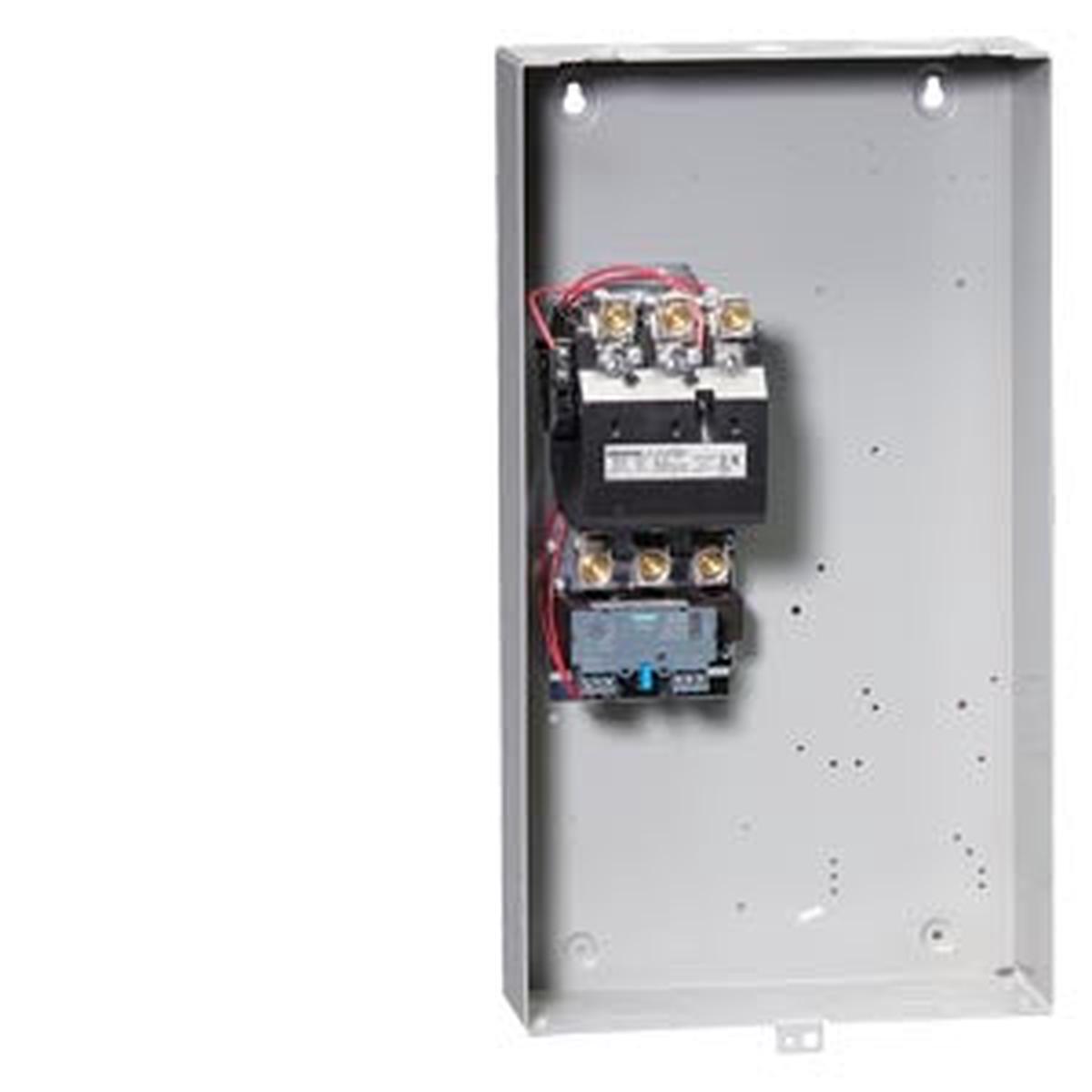

14JUH32BA – Siemens 135A 600V 3-Pole Non-Reversing Motor Starter Size 4 NEMA 1 Enclosure

14JUH32BA

14JUH32BA is a Siemens non-reversing motor starter designed for full-voltage across-the-line motor control applications.

This Size 4, 3-pole motor starter features a 135 ampere rating with a 50-200 amp adjustable solid-state overload relay. It supports 600V AC operation with a NEMA Type 1 enclosure suitable for indoor general purpose use. The starter includes a dual voltage coil for 110-120/220-240 VAC control voltage and is rated for heavy-duty motor starting with a horsepower rating up to 40 hp at 208V and 100 hp at 600V. It is built to Class 14 standards and manufactured in the USA.

Key Specifications
• Amperage: 135A full load, 50-200A overload range
• Voltage: 600V AC load, 110-120/220-240 VAC control voltage
• Poles: 3-pole
• Mounting Type: Standard width enclosure, NEMA Type 1
• Interrupt Rating: Heavy duty motor starter
• Series/Frame: Size 4, Class 14
• Trip Unit: Solid-state overload relay (ESP200)
• Enclosure: Indoor general purpose
• Horsepower Rating: Up to 40 hp at 208V, 100 hp at 600V
• Country of Origin: USA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 14JUH32BA
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 14
• Type : 14JU
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• Temp Rating : -13158 F (-2570 C)
• Horse Power : HP @ 3 Phase – 208V 40 hp HP @ 3 Phase – 240V 50 hp HP @ 3 Phase – 480V 100 hp
• Aux Contacts : 1NO
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 220
• Nema Rating : 4
• Enclosure : 1

Product Data

• UPC : 783087950221
• GTIN : 00783087950221
• Country of Origin : Mexico
• Dimensions : 13.38 in x 24.88 in
• Weight : 35.076
• Temp Rating : -13158 F (-2570 C)
• Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
