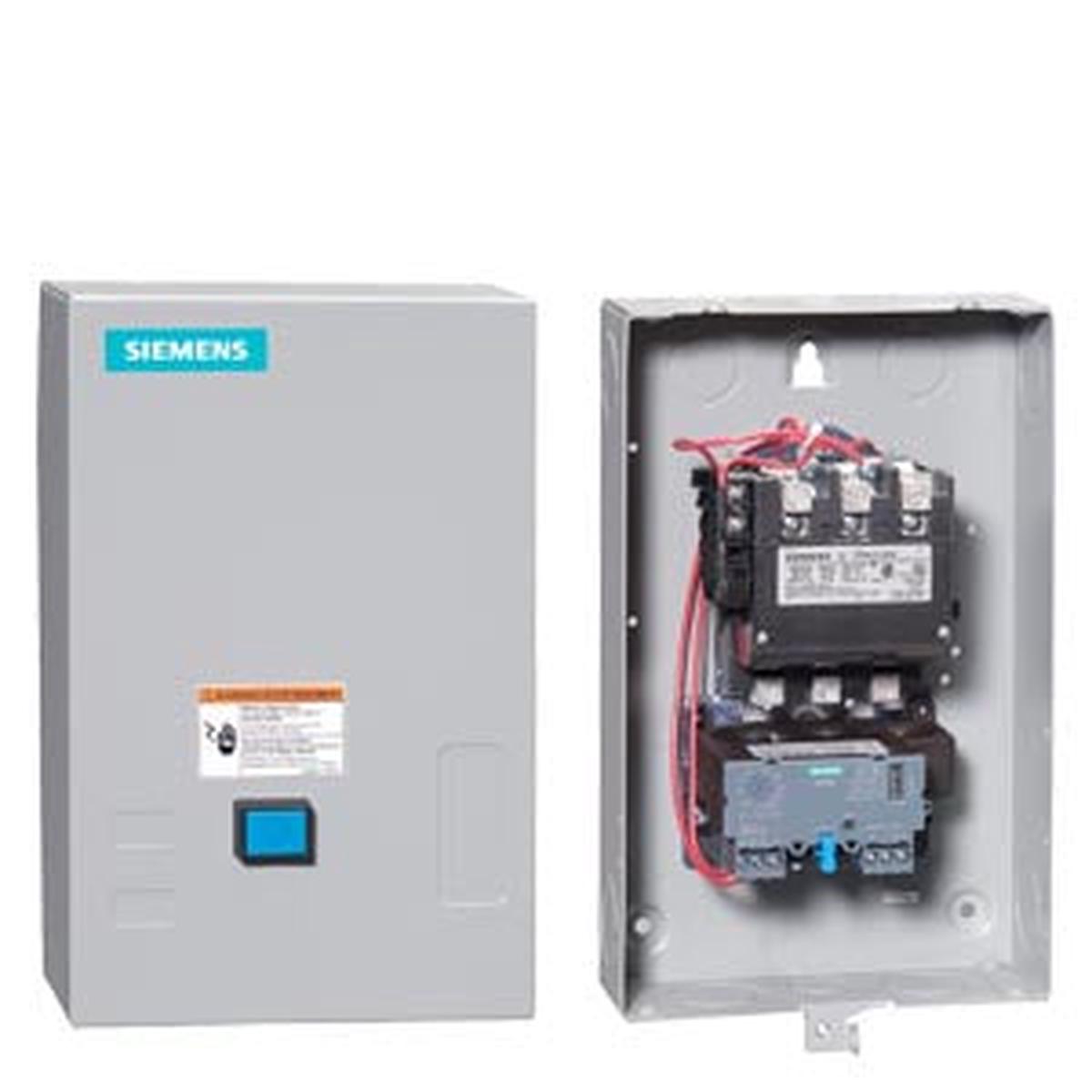

14GUG32BA – Siemens 60A 600VAC 3-Pole NEMA 2-1/2 Non-Reversing Motor Starter

14GUG32BA

14GUG32BA is a Siemens NEMA 2-1/2 size non-reversing motor starter designed for reliable motor control applications.This motor starter supports a load current rating of 60 amps and a load voltage rating of up to 600 VAC. It features a 3-pole configuration with a solid-state overload relay adjustable from 25 to 100 amps. The starter is chassis mount type and operates with a control coil voltage range of 110 to 240 VAC at 60 Hz. It is suitable for 3-phase motors up to 30 HP at 600 VAC and includes auxiliary contacts rated for 10 A at 600 VAC.

Key Specifications
• Amperage Rating: 60 A (overload relay adjustable 25-100 A)
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: Chassis Mount
• Starter Type: Non-Reversing
• NEMA Size: 2-1/2
• Horsepower Ratings: 15 HP at 200/208 VAC, 20 HP at 220/230 VAC, 30 HP at 460-600 VAC
• Control Voltage: 110-240 VAC, 60 Hz
• Auxiliary Contact Rating: 10 A at 600 VAC
• Overload Relay: Solid-state
• Enclosure Type: NEMA 1

At Essential Parts, we offer fast shipping, <(more…)

Specifications

• Part Number: 14GUG32BA
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 14
• Type : 14GU
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase – 208V 15 hp HP @ 3 Phase – 240V 20 hp HP @ 3 Phase – 480V 30 hp
• Aux Contacts : 1NO
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 220
• Nema Rating : 2.5
• Nema Starter Size : 2
• Enclosure : 1

Product Data

• UPC : 783087948082
• GTIN : 00783087948082
• Country of Origin : Mexico
• Dimensions : 7.97 in x 13.53 in
• Weight : 11.998
• Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
