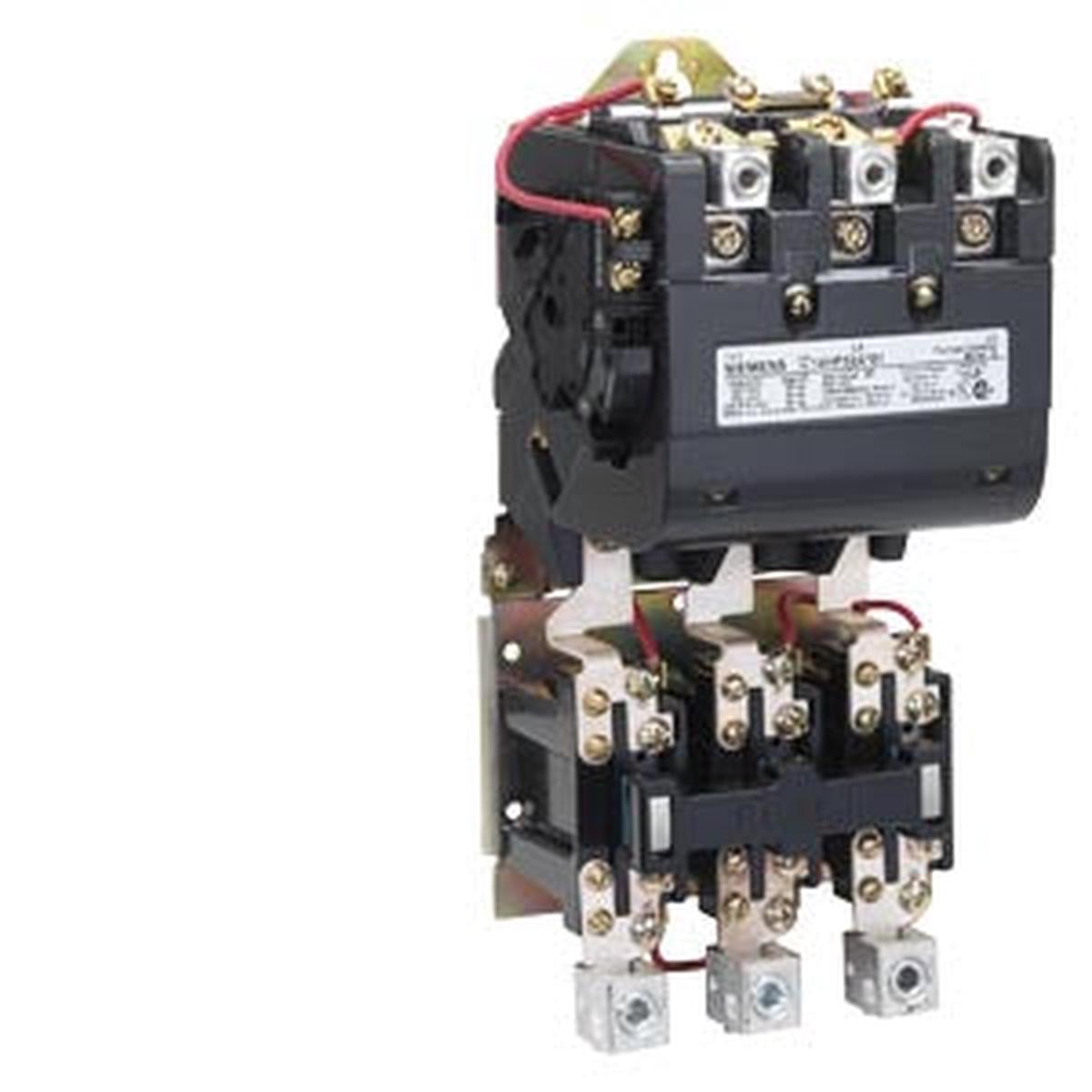

14GP32AA81 – Siemens 60A 600VAC 3-Pole Non-Reversing Motor Starter Size 2.5 with 120/240VAC Coil

14GP32AA81

14GP32AA81 is a Siemens non-reversing motor starter designed for 3-phase motor control applications.This motor starter features a 3-pole configuration rated for 60 amps and a maximum voltage of 600VAC. It is a size 2.5 controller half size unit with an ambient compensated bimetal overload relay. The starter includes a 120/240VAC coil control voltage and is open type (no enclosure). It supports motor horsepower ratings up to 30 HP at 460V and 575V, and comes with CSA and UL certifications.

• Amperage: 60A
• Voltage: 600VAC maximum
• Poles: 3
• Mounting Type: Open (no enclosure)
• Frame/Series: Size 2.5, Class 14
• Control Voltage: 110120/220240VAC 60Hz coil
• Motor HP Ratings: 15@200V, 20@230V, 30@460V, 30@575V
• Overload Relay: Ambient compensated bimetal
• Certifications: UL, CSA
• Weight: 4.1 lbs
• Dimensions: 8.38 x 5.75 x 4.00 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 14GP32AA81
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 14
• Type : 14GP
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 220
• Nema Rating : 2.5

Product Data

• UPC : 783087023376
• GTIN : 00783087023376
• Country of Origin : Mexico
• Dimensions : 1.72 x 1.102 x 0.807 inch
• Weight : 5.071
