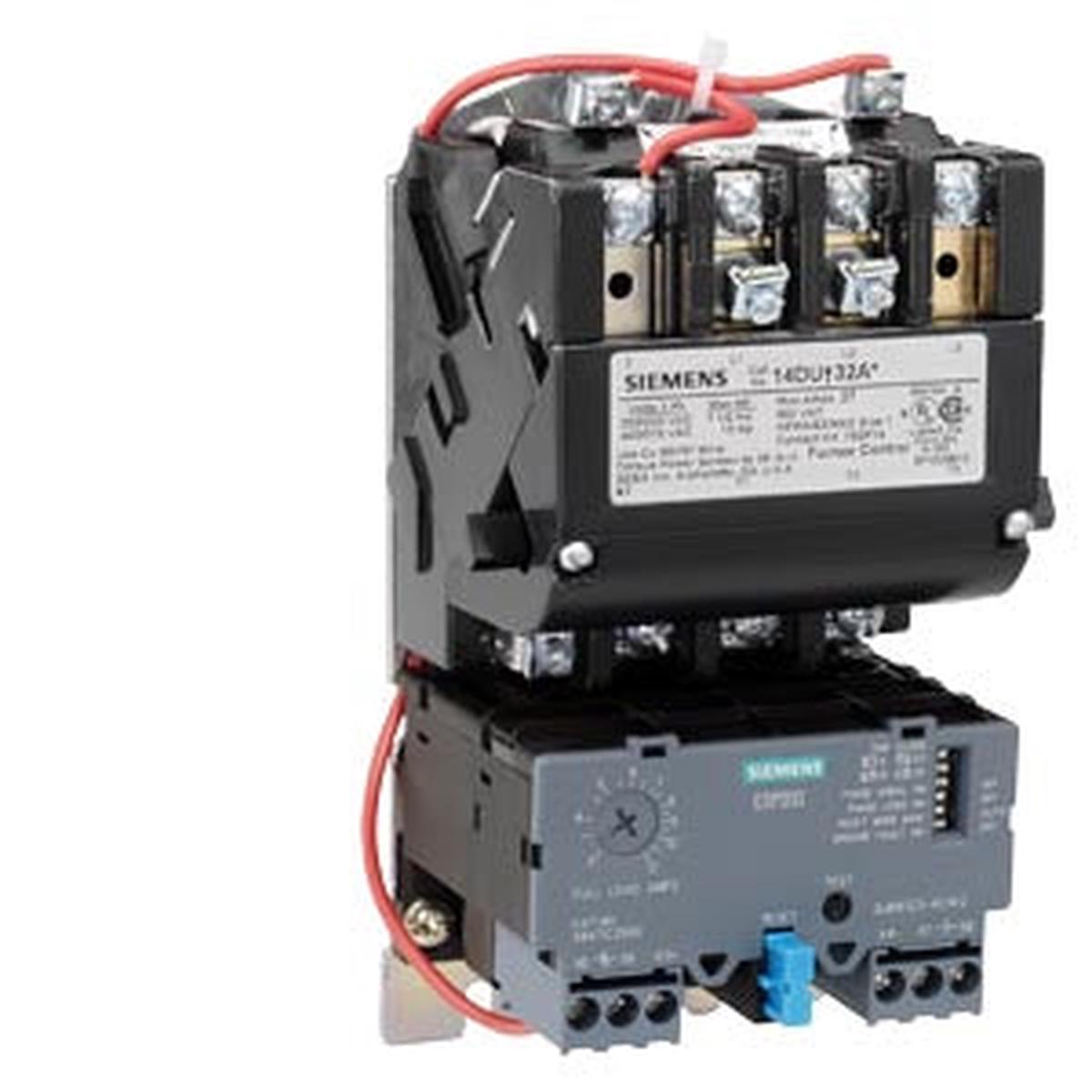

14DUE32AA – Siemens 27A 3-Pole Motor Starter NEMA 1 120/240V Coil Solid State Overload
14DUE32AA 14DUE32AA is a Siemens heavy duty motor starter designed for reliable motor control applications.This NEMA Size 1 motor starter features a 3-pole design with a solid state overload relay adjustable from 10 to 40 amps. It supports dual coil...
- HARD-5AF6C8
14DUE32AA
14DUE32AA is a Siemens heavy duty motor starter designed for reliable motor control applications.This NEMA Size 1 motor starter features a 3-pole design with a solid state overload relay adjustable from 10 to 40 amps. It supports dual coil voltages of 110/120 or 220/240 VAC and is rated for 7.5 HP at 230V and 15 HP at 460V three-phase motors. The starter includes a normally open auxiliary contact for low voltage protection or release and offers manual or automatic reset options. It is UL listed and CSA certified for industrial use.
- Amperage Range: 10 to 40 A adjustable overload
- Voltage: 110/120 or 220/240 VAC coil
- Poles: 3-pole
- NEMA Size: 1
- Horsepower Rating: 7.5 HP @ 230V, 15 HP @ 460V 3-phase
- Overload Relay: Solid state, manual/automatic reset
- Auxiliary Contact: 1 normally open (NO)
- Enclosure: Open (no enclosure)
- Interrupt Rating: Industrial heavy duty
- Certifications: UL listed, CSA certified
- Mounting Type: Panel mount
- Operating Frequency: 50/60 Hz
At Essential Parts, we offer
Specifications
- Part Number: 14DUE32AA
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 14
- Type : 14DU
- Voltage : 600
- Amperage : 40
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase – 208V 7 1/2 hp HP @ 3 Phase – 240V 7 1/2 hp HP @ 3 Phase – 480V 10 hp
- Configuration : Non-Reversing
- Aux Contacts : 1NO
- Coil Voltage Maximum : 240
- Coil Voltage Minimum : 220
- Nema Rating : 1
- Amperage Maximum : 40
- Amperage Minimum : 10
Product Data
- UPC : 783087817845
- GTIN : 00783087817845
- Country of Origin : Mexico
- Dimensions : 1.504 x 1.13 x 0.76 inch
- Weight : 3
- Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
