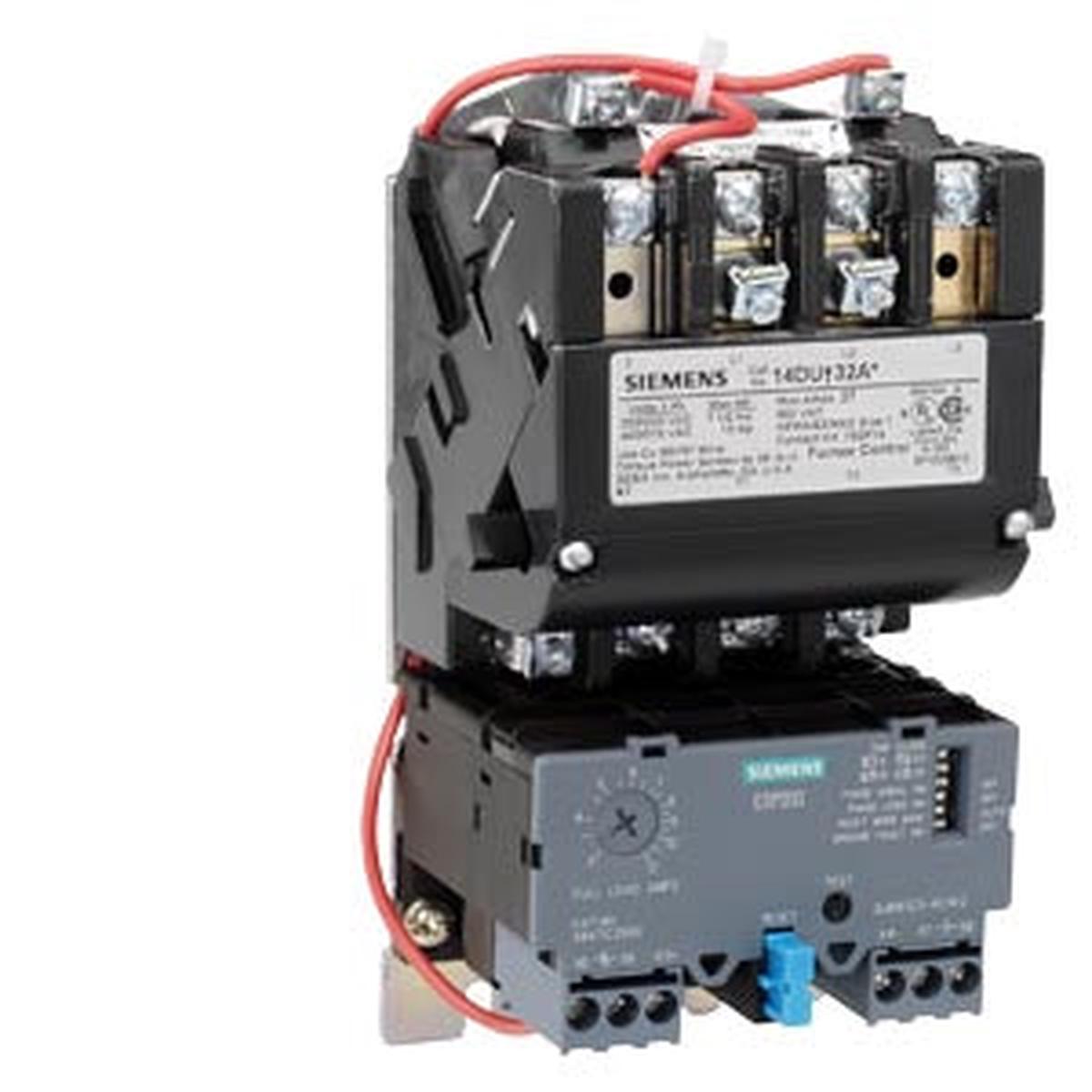

14DUD32AA – Siemens 22A 600VAC 3-Pole Size 1 Non-Reversing Motor Starter with Solid-State Overload

14DUD32AA

14DUD32AA is a Siemens non-reversing motor starter designed for heavy-duty motor control applications.This Size 1 motor starter features a 3-pole configuration with a solid-state overload relay adjustable from 5.5 to 22 amps. It supports dual coil voltages of 110-120/220-240 VAC at 60 Hz and is rated for 10 HP at 460 VAC three-phase motors. The starter includes a normally open auxiliary contact, automatic/manual/remote reset options, and is built to NEMA 1 open enclosure standards. It offers rugged industrial design, reliable phase loss detection, and UL and CSA certifications.

Key Specifications
• Amperage Range: 5.5 to 22 Amps
• Voltage Rating: 600 VAC maximum
• Coil Voltage: 110-120/220-240 VAC, 60 Hz
• Number of Poles: 3
• Motor Power: 10 HP at 460 VAC, 3-phase
• Overload Relay: Solid-State, adjustable
• Reset Type: Automatic, Manual, Remote
• Enclosure Type: NEMA 1, Open
• Auxiliary Contact: 1 Normally Open (1NO)
• Interrupt Rating: Class 14 Full Voltage
• Mounting: Size 1 NEMA Frame
• Certifications: UL Listed, CSA Certified

(more…)

Specifications

• Part Number: 14DUD32AA
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 14
• Type : 14DU
• Voltage : 600
• Amperage : 22
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase – 208V 3 hp HP @ 3 Phase – 240V 3 hp HP @ 3 Phase – 480V 10 hp
• Configuration : Non-Reversing
• Aux Contacts : 1NO
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 220
• Nema Rating : 1
• Amperage Maximum : 22
• Amperage Minimum : 5.5

Product Data

• UPC : 783087817814
• GTIN : 00783087817814
• Country of Origin : Mexico
• Dimensions : 1.52 x 1.114 x 0.776 inch
• Weight : 3
• Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
