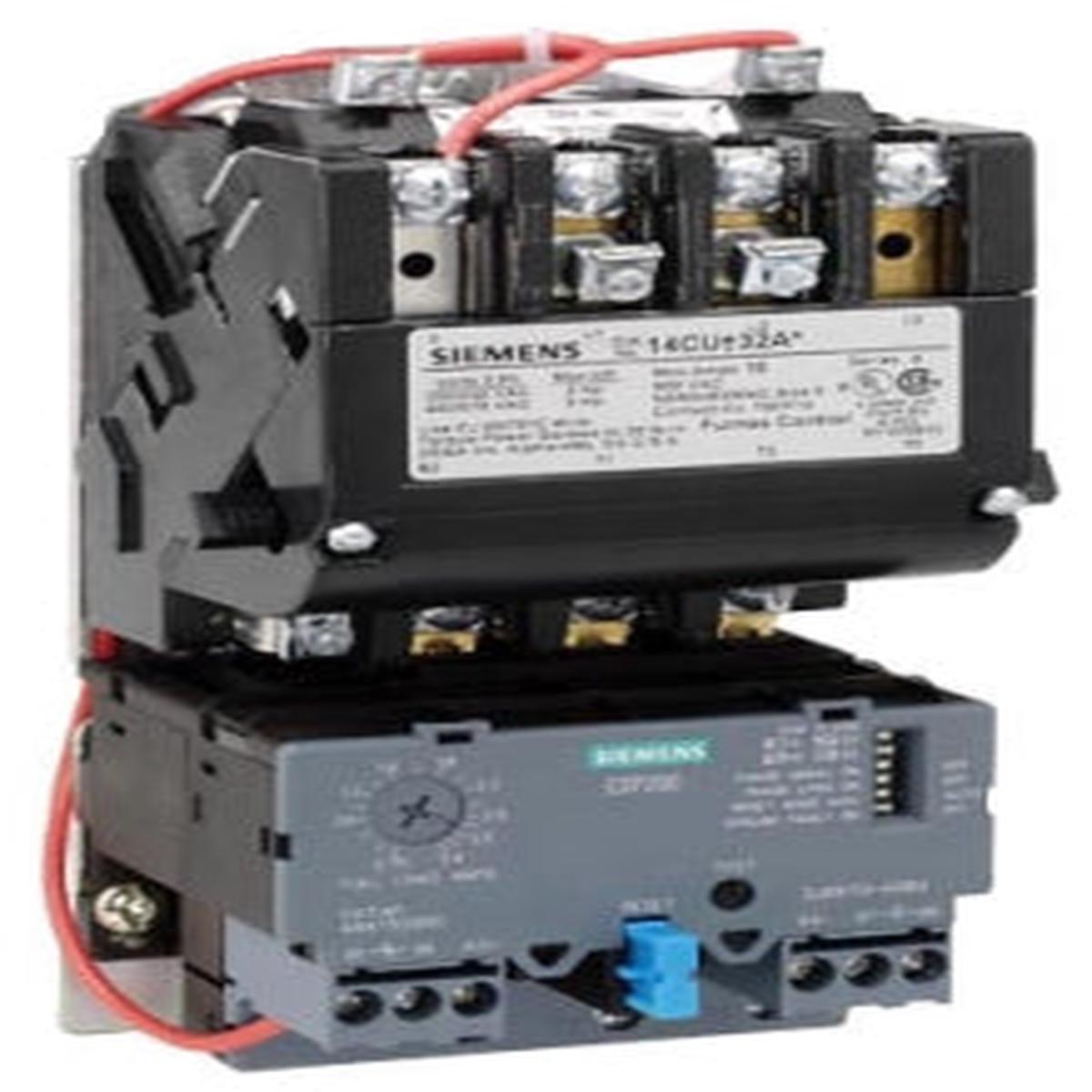

14CUB32AC – Siemens 18A 600V 3-Pole NEMA 0 Non-Reversing Motor Starter

14CUB32AC

14CUB32AC is a Siemens NEMA 0 non-reversing motor starter designed for reliable three-phase motor control applications. This starter features a solid-state overload relay and is suitable for use with motors up to 18A at 600V AC. The 14CUB32AC motor starter is built for industrial environments and provides full-voltage starting for three-phase AC motors. It is rated for 220-240/440-480V AC control voltage and is compatible with a wide range of motor loads. The unit is designed for panel mounting and does not include an enclosure.

• Part Number: 14CUB32AC
• Manufacturer: Siemens
• Motor Type: AC Motor
• Control Type: Motor Starter
• Number of Motors: 1
• Load Voltage: 600V AC
• Control Voltage: 220-240/440-480V AC
• Output Current: 18A
• Poles: 3
• Phase: 3
• NEMA Size: 0
• Mounting Type: Panel Mount
• Overload Type: Solid-State
• Frequency Rating: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and &lt(more…)

Specifications

• Part Number: 14CUB32AC
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 14
• Type : 14CU
• Voltage : 600
• Amperage : 4
• Phase : 3
• Poles : 3
• Configuration : Non-Reversing
• Coil Voltage Maximum : 480
• Coil Voltage Minimum : 440
• Amperage Maximum : 3.4
• Amperage Minimum : 0.75

Product Data

• UPC : 783087940185
• GTIN : 00783087940185
• Country of Origin : Mexico
• Weight : 3
• Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
