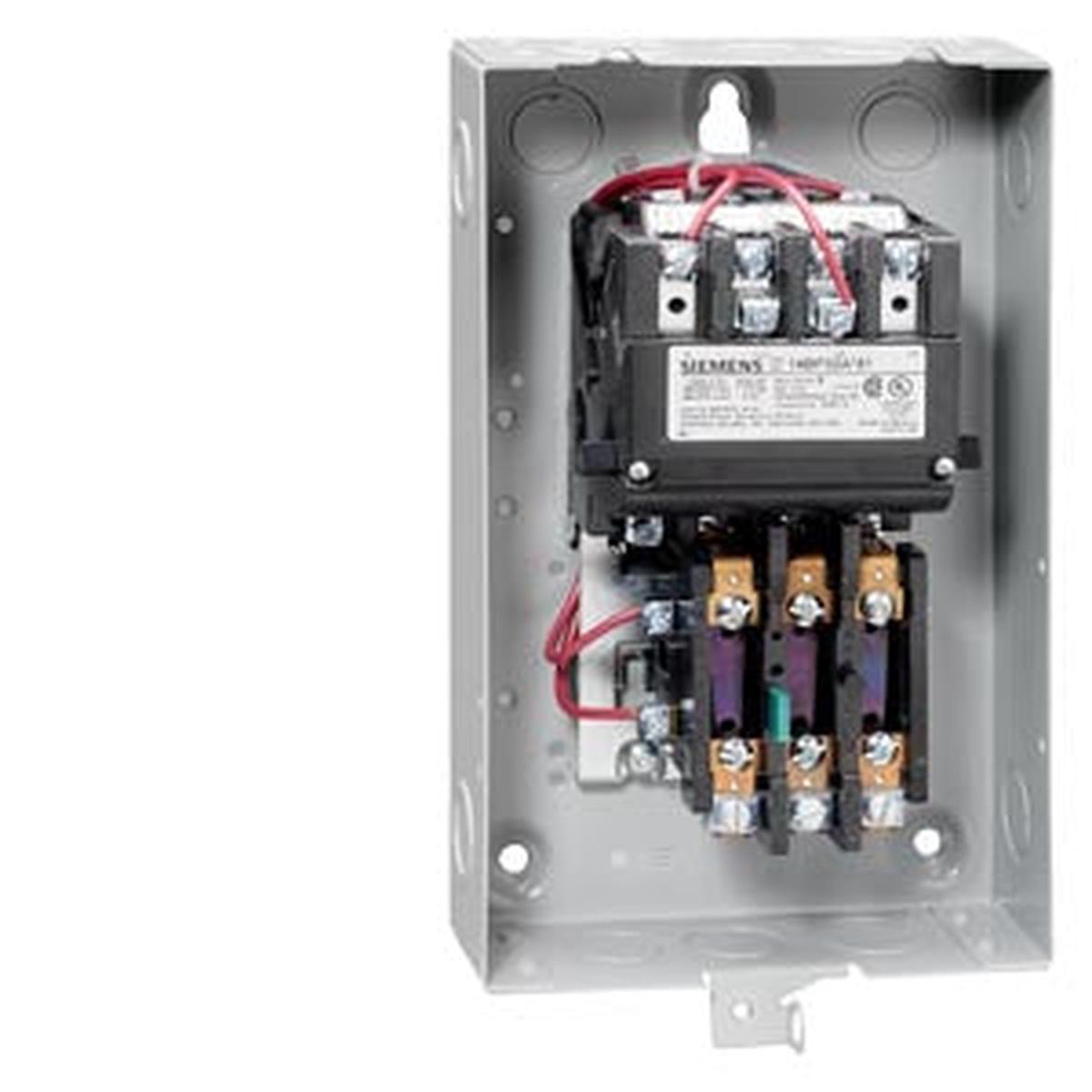

14BP12BF81 – Siemens Class 14 Motor Starter 600V 1-Phase 9A 2 Pole NEMA 1 Enclosure

14BP12BF81

14BP12BF81 is a Siemens Class 14 motor starter designed for reliable single-phase motor control applications. This starter features a NEMA 1 enclosure for indoor use and is rated for 600 volts and 9 amps, making it suitable for motors up to 1/3 horsepower at 115 volts or 1 horsepower at 208/230 volts. The 14BP12BF81 is a full voltage non-reversing starter with a 2-pole configuration and a 120-volt coil. It is part of the Siemens Class 14 series, known for durability and ease of installation in light industrial, commercial, and residential environments. Heater packs must be purchased separately for proper overload protection.

• Part Number: 14BP12BF81
• Manufacturer: Siemens
• Series/Frame: Class 14, Size 00
• Amperage: 9 A
• Voltage: 600 V
• Poles: 2
• Phases: 1
• Mounting Type: Standard Width
• Enclosure: NEMA 1 (Indoor Rated)
• Coil Voltage: 120 VAC
• Motor Power: 1/3 HP at 115 V, 1 HP at 208/230 V
• Type: Full Voltage, Non-Reversing

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 14BP12BF81
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 14
• Type : 14BP
• Voltage : 600
• Amperage : 9
• Phase : 1
• Poles : 2
• Coil Voltage Maximum : 120
• Nema Rating : 00
• Enclosure : 1

Product Data

• UPC : 783087210363
• GTIN : 00783087210363
• Country of Origin : Mexico
• Dimensions : 2.016 x 1.24 x 1.087 inch
• Weight : 7.606
