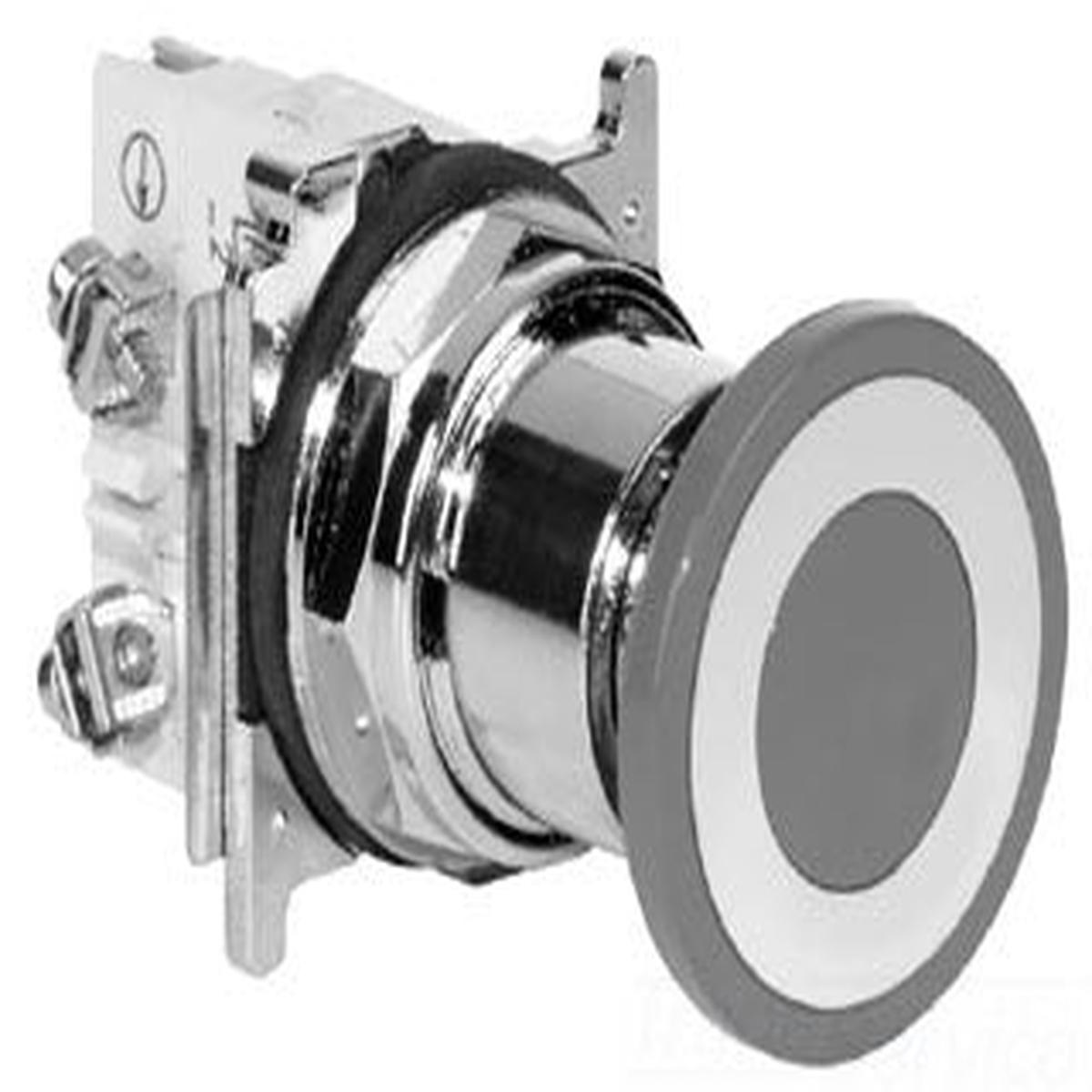

10250T4B603X – Cutler Hammer 30.5mm Heavy-Duty Push-Pull Operator, 2NC, Non-Illuminated, Class I Div 2, Three-Position

10250T4B603X

10250T4B603X is an Eaton 30.5 mm heavy-duty push-pull unit, factory assembled with black 40 mm button, non-illuminated, three-position operation.This Class I Division 2 pushbutton features standard actuator, plastic bus, 2NC contacts, momentary push and pull with maintained intermediate position. It offers watertight/oiltight construction rated for NEMA 4, 3, 12, 4X, 13, 3R environments and NEC Class I Division 2, Groups B, C, D.

• Series: 10250T
• Size: 40 mm
• Actuator Color: Black
• Bus Material: Plastic
• Contact Configuration: 2 NC
• Illumination: Non-illuminated
• Number of Positions: 3
• Operating Mode: Momentary push and pull, maintained intermediate
• Rating: NEMA 4, NEMA 3, NEMA 12, NEMA 4X, NEMA 13, NEMA 3R, NEC Class I Division 2 Groups B, C, D
• Type: Class I Division 2
• Certifications: UL Listed, CSA Certified
• Special Features: Factory Assembled

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 10250T4B603X
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Part And Accessory
• Family : 10250T Series

Product Data

• UPC : 78211427246
• GTIN : 00782114272466
• Country of Origin : Dominican Republic
• Weight : 5.19
• Certification : UL Listed,CSA Certified,CE Marked
