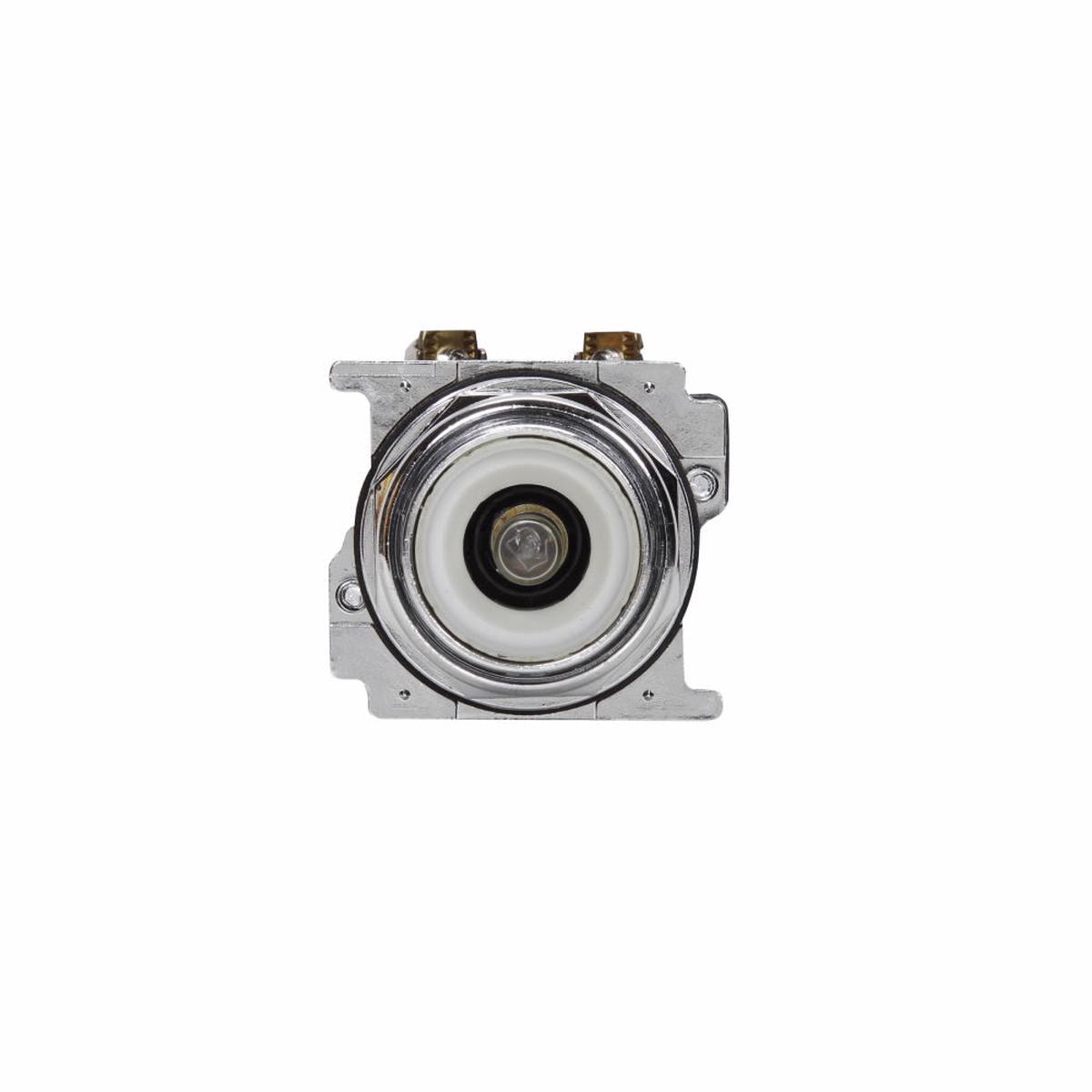

10250T473 – Cutler Hammer 30.5 mm Heavy-Duty Illuminated Push Button NEMA 3R 3 4 4X 12 13 Three-Position Momentary Push-Pull Maintained Intermediate

10250T473

10250T473 is an Eaton 30.5 mm heavy-duty illuminated pushbutton operator with three-position action.10250T473 features momentary push and pull with maintained intermediate position, incandescent full voltage light unit at 6 VAC/DC, and polymer operator material for watertight/oiltight applications.

• Series: 10250T
• Type: 30.5 mm Heavy-Duty Watertight/Oiltight
• Operation: Three-position, Push momentary, Intermediate maintained, Pull momentary
• Illumination: Illuminated, Incandescent full voltage
• Light Unit Voltage: 6 VAC/DC
• Operator Style: Extended, No cap
• Panel Mounting: 30 mm hole diameter
• Dimensions: 1.38 in H x 1.38 in W x 2.87 in D
• NEMA Ratings: NEMA 3, 3R, 4, 4X, 12, 13
• Certifications: UL Listed, CSA Certified, CE, ROHS
• Operator Material: Polymer
• Warranty: 1 year

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 10250T473
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Part And Accessory
• Family : 10250T Series
• Type : 10250T

Product Data

• UPC : 782113226040
• GTIN : 00782113226040
• Country of Origin : Dominican Republic
• Dimensions : 2.87 in x 1.38 in x 1.38 in (Length/Depth x Height x Width)
• Weight : 0.01 lb
• Certification : UL Listed,CSA Certified,CE Marked
