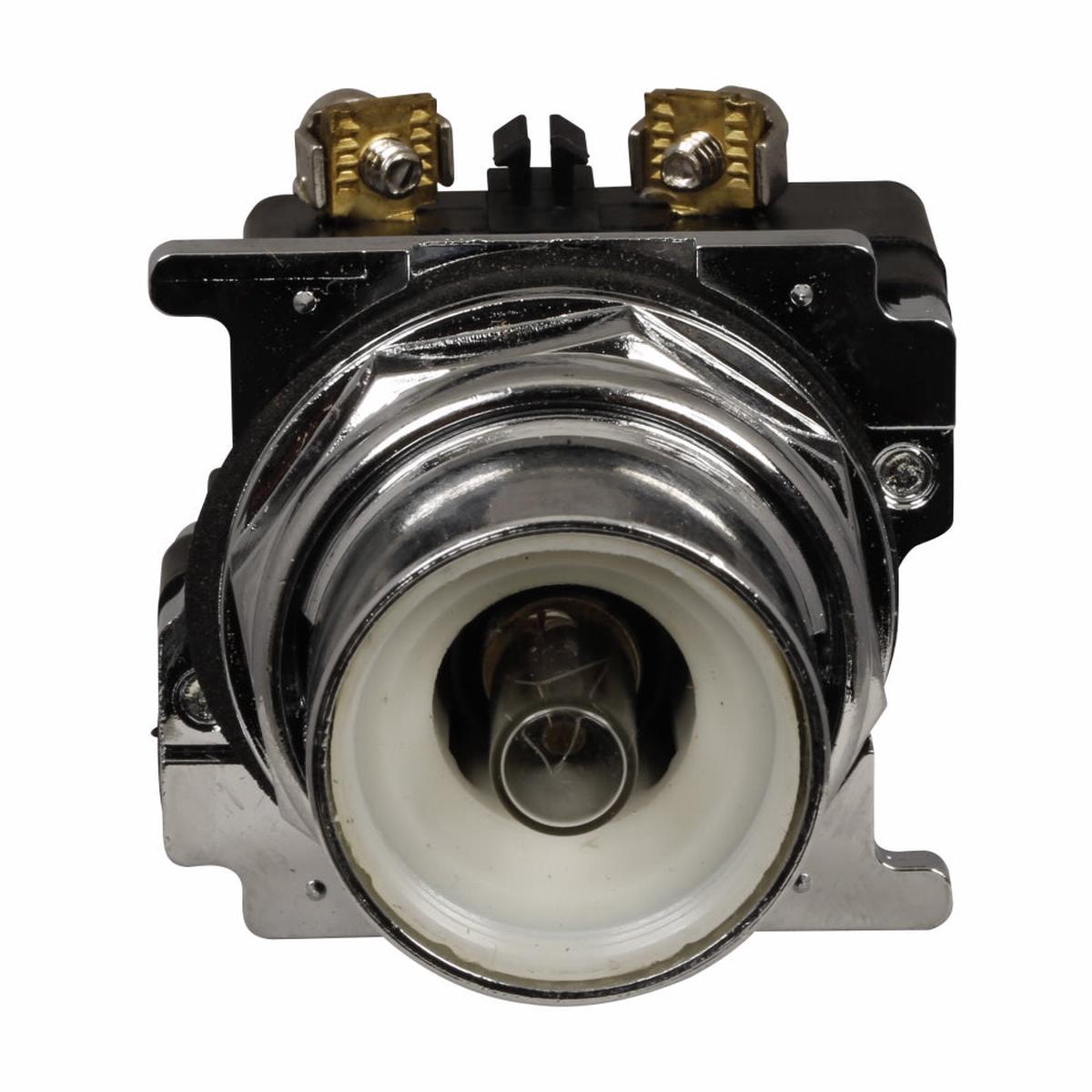

10250T471 – Cutler Hammer 30.5mm Heavy-Duty Illuminated Pushbutton, 120V, NEMA 3/3R/4/4X/12/13

10250T471

10250T471 – Eaton heavy-duty illuminated pushbutton operator, 30.5 mm size with 120 VAC incandescent resistor light unit.The Eaton 10250T471 is a 30.5 mm heavy-duty pushbutton from the 10250T series, featuring three-position operation with momentary push and pull, maintained intermediate action. It includes a clear extended plastic actuator, chrome bezel, and 1NO contact configuration for reliable performance in demanding environments. Constructed with zinc die-cast metal body and controlled compression sealing gasket for durability.

• Size: 30.5 mm
• Series: 10250T
• Operation: Three-position, momentary push/pull, maintained intermediate
• Illumination: Incandescent resistor light unit
• Voltage: 120 VAC
• Actuator: Extended, clear plastic
• Bezel: Chrome
• Contacts: 1NO
• NEMA Ratings: 3, 3R, 4, 4X, 12, 13
• Construction: Heavy-duty zinc die-cast

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 10250T471
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Part And Accessory
• Family : 10250T Series
• Type : 10250T

Product Data

• UPC : 78211322602
• GTIN : 00782113226026
• Country of Origin : Dominican Republic
• Dimensions : 2.4 in x 3.3 in x 2.1 in (Length/Depth x Height x Width)
• Weight : 0.2
• Certification : UL Listed,CSA Certified,CE Marked
