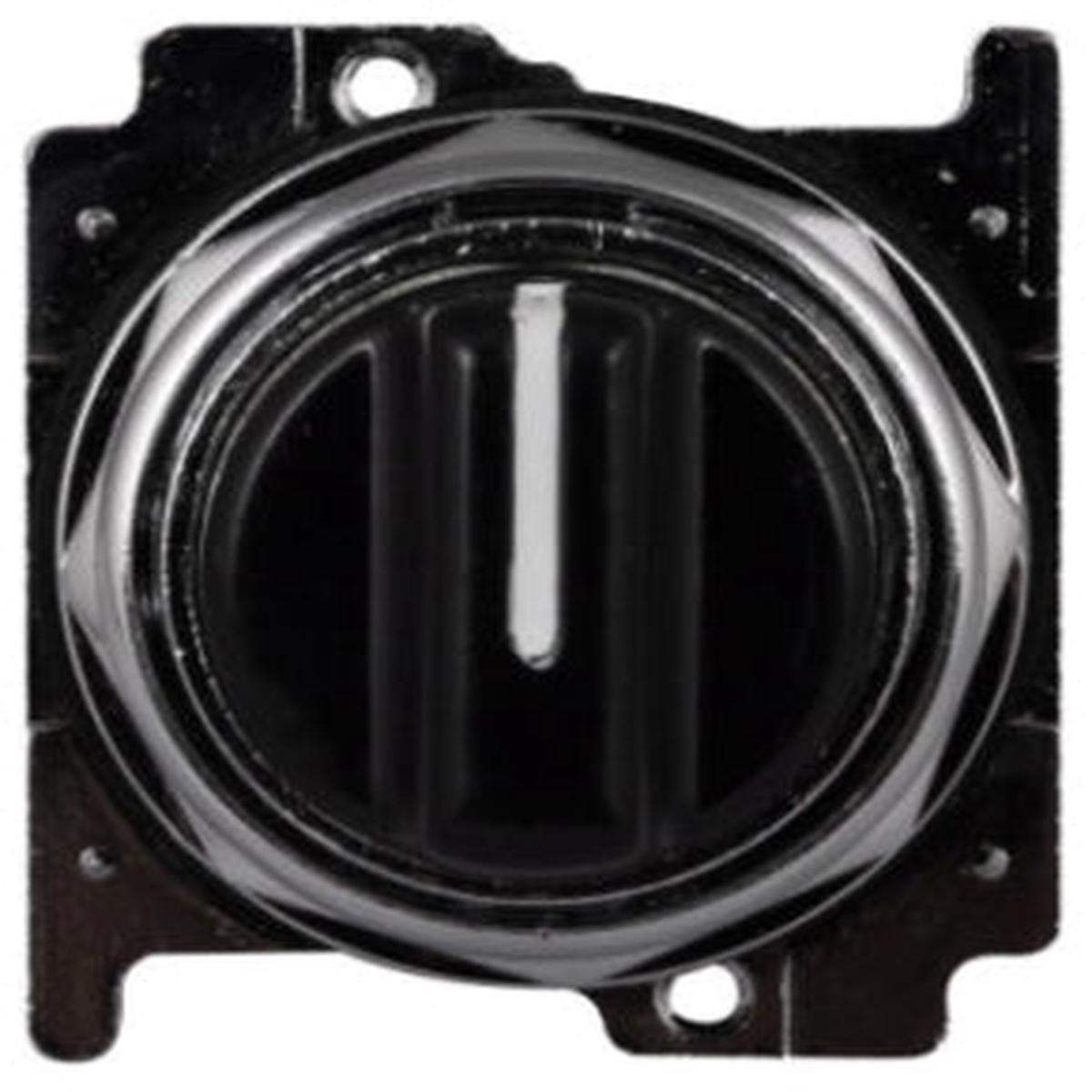

10250T1332 – Eaton 10250T Series Heavy Duty 30.5mm Selector Switch, 3 Position, Black Knob, NEMA 3/3R/4/4X/12/13 Rated

10250T1332

10250T1332 is a heavy-duty Eaton 10250T Series selector switch featuring a 30.5 mm black knob actuator designed for industrial motor control applications. This compact unit combines reliable performance with robust construction, making it ideal for demanding industrial environments requiring dependable switching operations.The selector switch features zinc die cast construction with chrome-plated housing and mounting nut for enhanced durability and corrosion resistance. It delivers a 60-degree throw action with Cam 2 configuration and supports three-position operation. The unit is rated for 600 VAC and operates across a temperature range of 1 to 150 degrees Fahrenheit, with NEMA ratings of 3, 3R, 4, 4X, 12, and 13 for versatile installation in various enclosure types.

• Part Number: 10250T1332
• Series: 10250T
• Size: 30.5 mm
• Actuator Type: Black Knob
• Number of Positions: 3
• Cam Configuration: Cam 2
• Throw Angle: 60 degrees
• Voltage Rating: 600 VAC
• Temperature Range: 1 to 150 degrees Fahrenheit
• NEMA Ratings: 3, 3R, 4, 4X, 12, 13
• Certifications: UL Listed, CSA Certified, CE Marked
• Dimensions: 1.8 in length x 2.1 in height x 1.8 in width

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 10250T1332
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Pilot Device
• Section : Handles
• Family : 10250T Series
• Type : 10250T

Product Data

• UPC : 782113226385
• GTIN : 00782113226385
• Country of Origin : Dominican Republic
• Dimensions : 1.8 in x 2.1 in x 1.8 in (Length/Depth x Height x Width)
• Weight : 0.3
• Certification : UL Listed,CSA Certified,CE Marked
